ADDING A CAMERA TO A MAP


  1. Open Instek Digital's VMS Command Center;
  2. Click on the Setup button in the menu bar;
  3. Now the Setup window will appear;

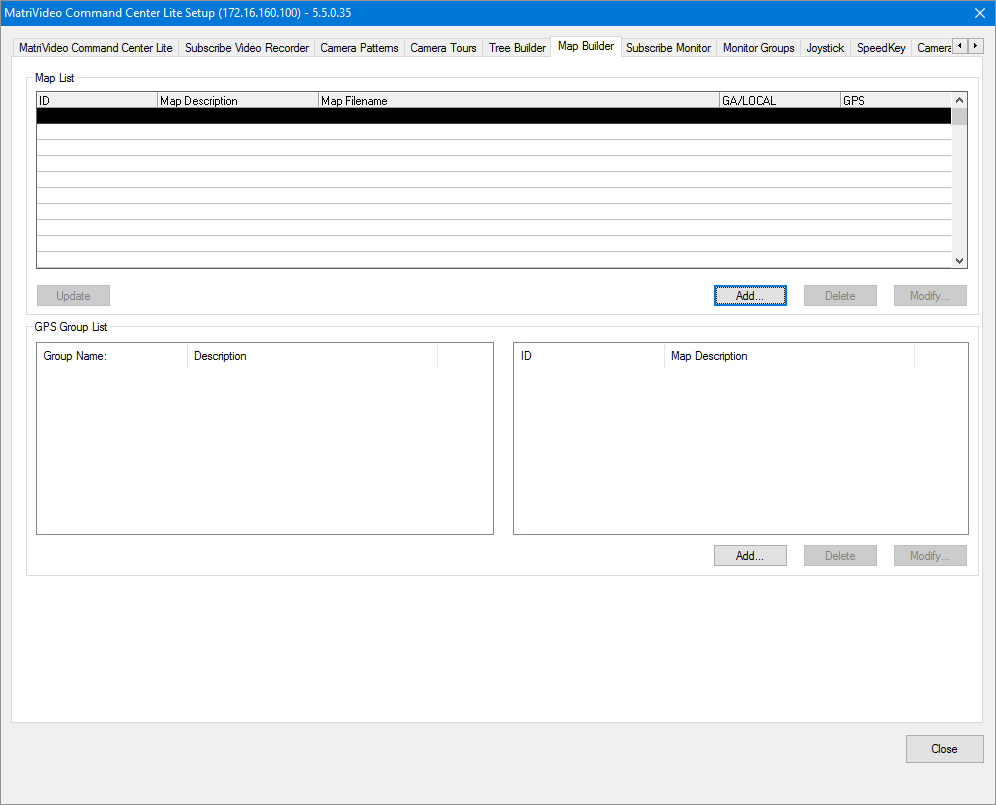

  4. Select the Map Builder tab in the top;

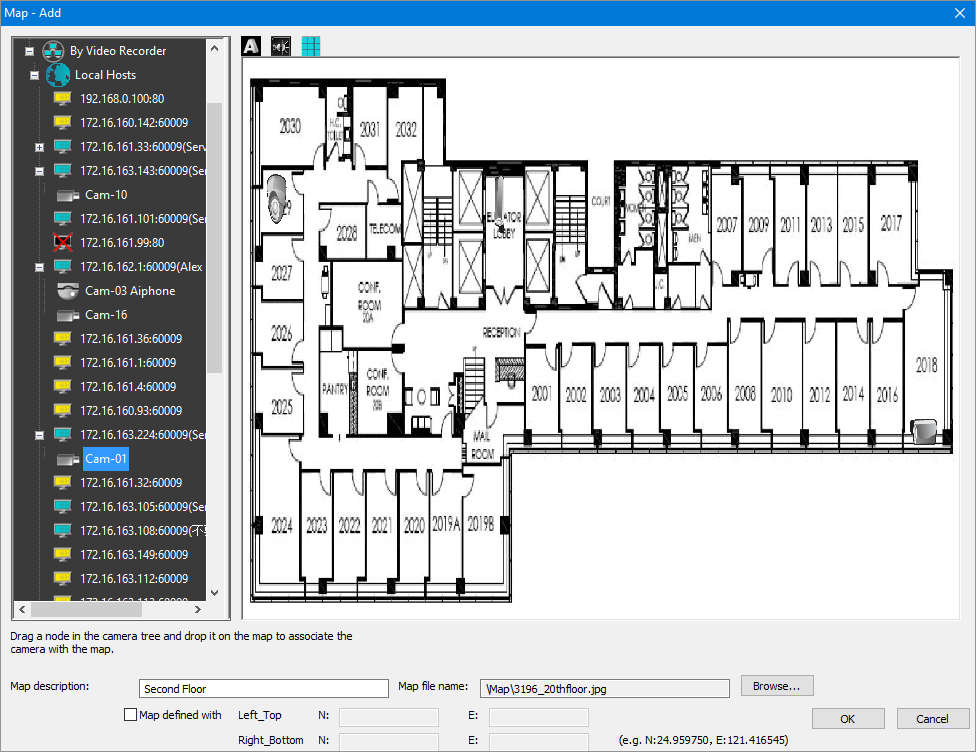

  5. Click on the Add button;
  6. Enter a map description in the Map description input field;
  7. Select a map by clicking on the Browse button and select a map;
  8. Drag and drop a camera from the device tree on to the map and place it to the dedicated location;
  9. After all the cameras have been placed, click the OK button;

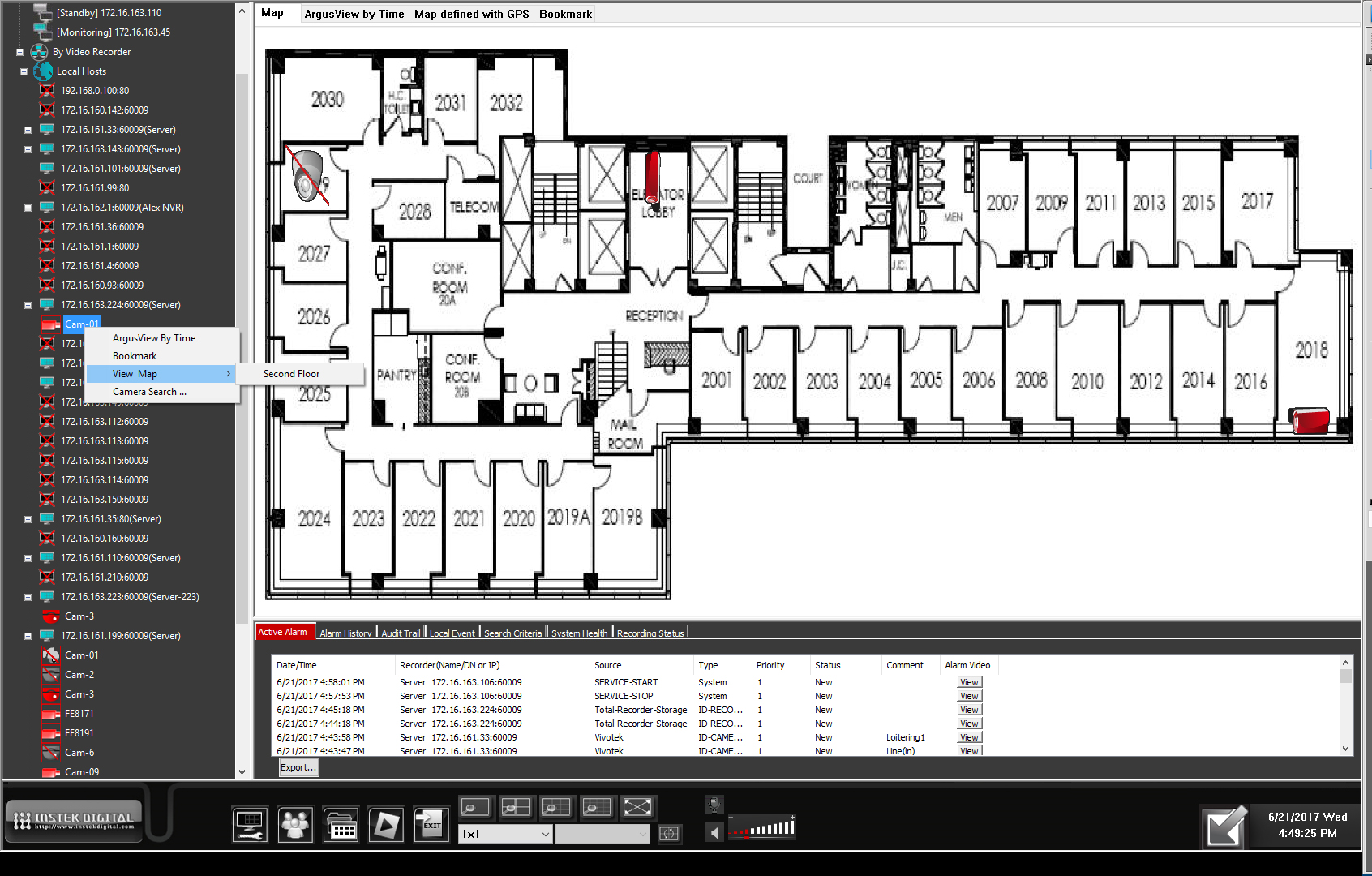

  10. To view the map, right click on the dedicated camera > select View Map and the desired map;
