EXTENDED STORAGE

Extended storage units seamlessly integrate between any NVR or Archive Server and extend the recording capacity on an as-needed basis. Extended storage units support various RAID configurations and can be stacked together to meet additional storage needs.

Features Highlights:

interfaces with SAS (DAS) and iSCSI (IP SAN)
RAID-5 and RAID-6 and hotswappable hard drives
redundant load sharing hotswappable power supplies
real-time drive activity and status indicators
connectivity up to 12Gb

audible alarm notification
password protection and UPS connection
supports RAID-5 and RAID-6 for video data protection (optional)
Bad block auto-mapping

IP SAN

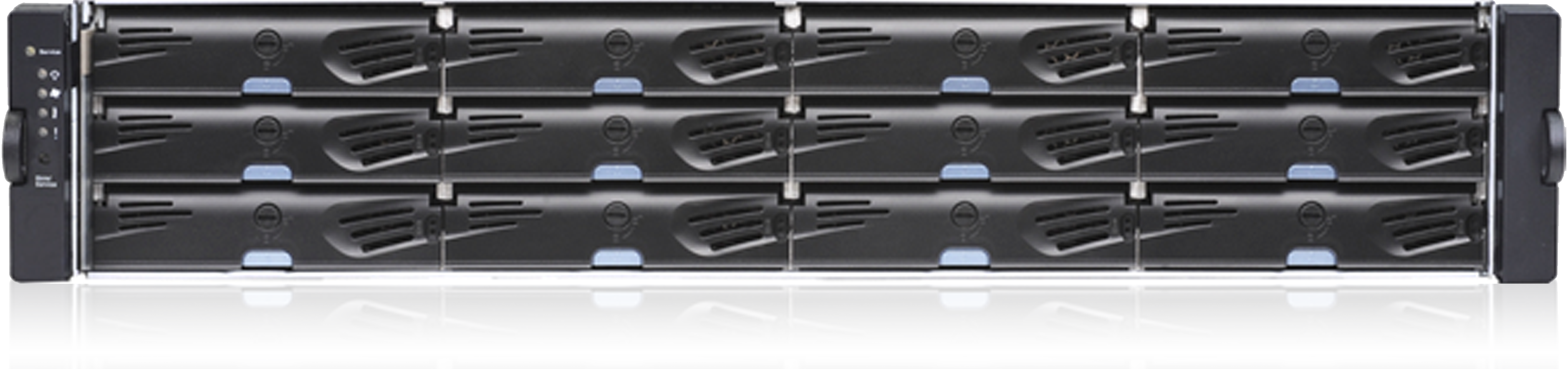

This extended storage offers up to 336TB of storage at a well priced level. Its power saving technology has been given a green-award and can result in 70% energy costs savings annually. It features a quad-port iSCSI 1GB access with link aggregation.

JBOD

Through SAS expansion ports, each Instek Digital JBOD storage system can connect with robust and high-density expansion enclosures to provide a maximum capacity of 60 SATA/SAS drives.

SAS II JBOD

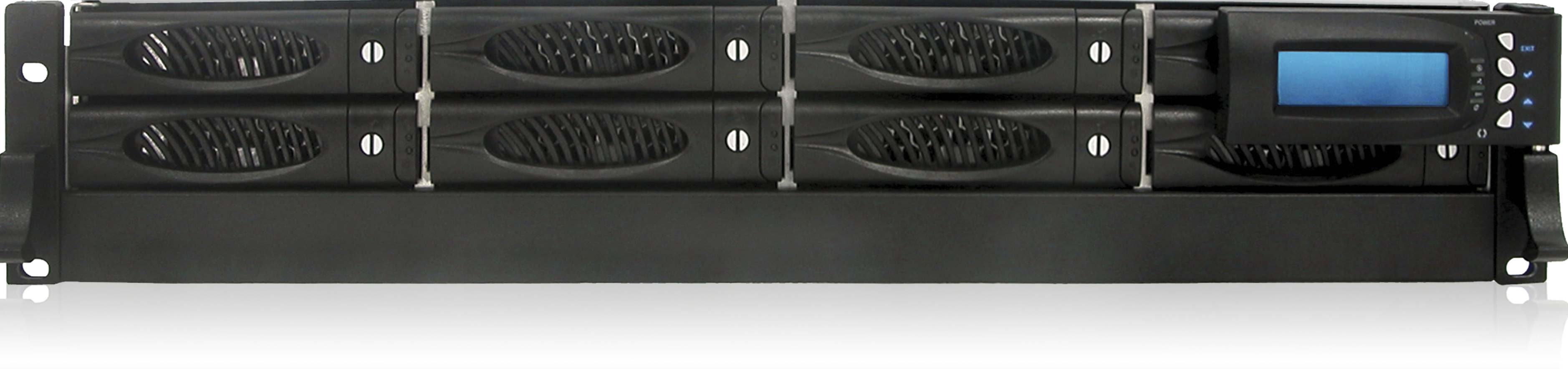

Instek Digital™ Serial Attached SCSI II JBOD Storage features the latest SASII (12Gb/s) interface and designed to fit in with the environment which needed highly reliable and relentless data growth.

Instek Digtal Serial Attached SCSI II JBOD

EXTENDED STORAGE COMPARISON

View the different storage availabilities

	DS2400-IP	DS2400-JB	DS3100-JB	DS3200-JB
Interface	IPSAN (IP storage area network	JBOD (just a bunch of disks)	Serial Attached SCSI II JBOD	Serial Attached SCSI II JBOD
Form factor	2U / 3U / 4U rack-mountable	2U / 3U / 4U rack-mountable	2U rackmountable	3U / 4U rackmountable
Controller	single	single	single	single
Datasheet

CONNECTIVITY OPTIONS

Instek Digital Extended Storage is an affordable extention of additional storage capacity for Instek Digital's NVR and/or archive server. Below overview displays the maximum connectivity between IP SAN and JBOD devices.

DS2412(R)-IP Connectivity

The maximum number of hard-disc drives for a IP SAN configuration with JBOD is 432. For example a 12 bays IP SAN can be expand with JBOD devices with a total number of 420 hard-disc drives.

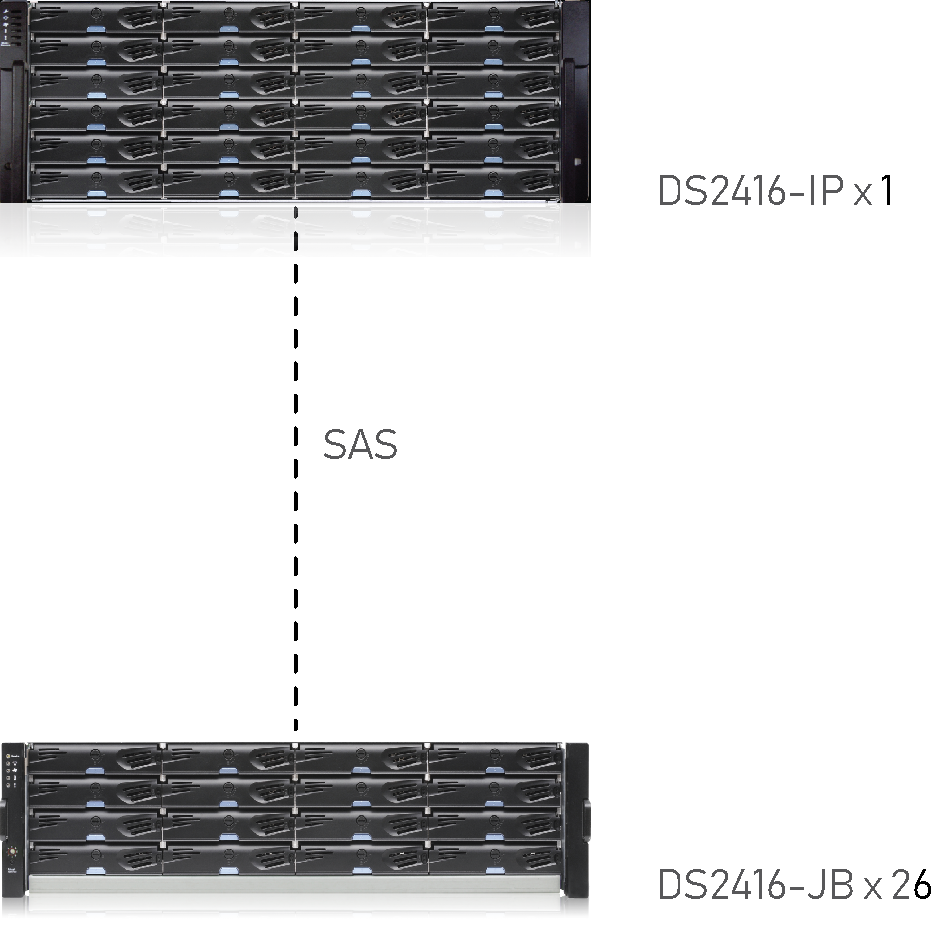

DS2416(R)-IP Connectivity

The maximum number of hard-disc drives for a IP SAN configuration with JBOD is 436. For example a 16 bays IP SAN can be expand with JBOD devices with a total number of 424 hard-disc drives.

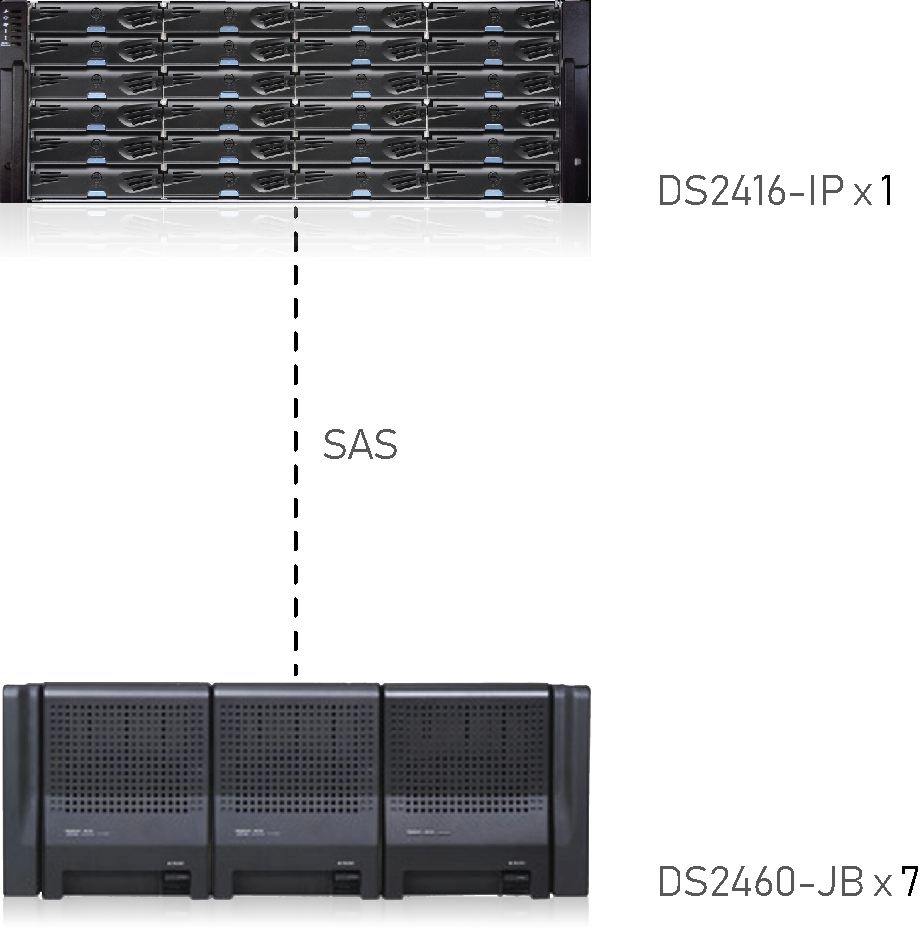

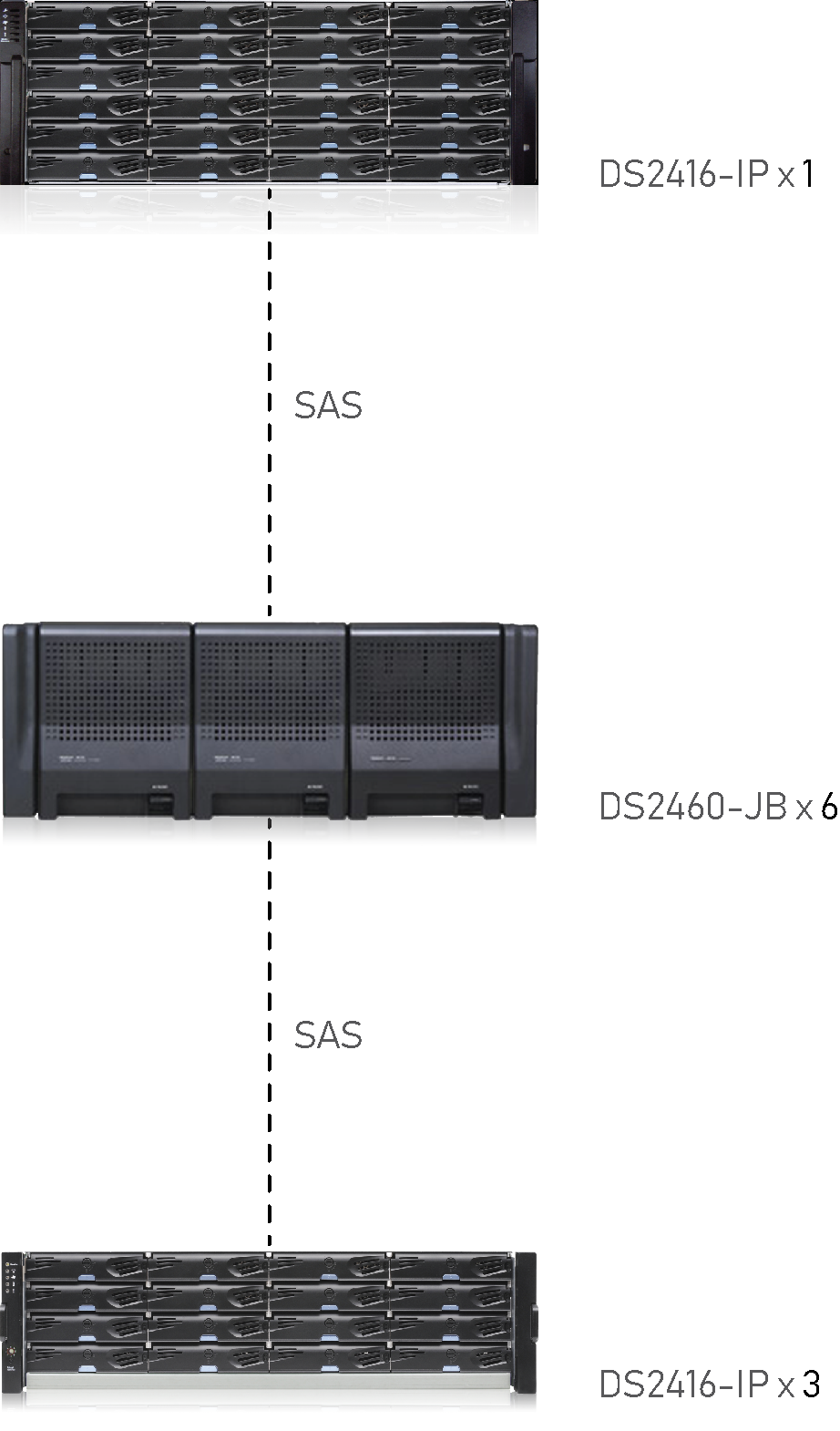

DS2424(R)-IP Connectivity

The maximum number of hard-disc drives for a IP SAN configuration with JBOD is 444. For example a 24 bays IP SAN can be expand with JBOD devices with a total number of 420 hard-disc drives.
